DJI-Innovations is an superior UAV(unmanned aerial vehicles) developer and manufacturer, in order to develop a new UAV, they fortunately found Tuowei thru Internet to make a few prototypes so that they could check if there was any defect from their design. Our engineers needed to take good care and pay highly attention of this UAV project as the high accurancy and best surface finishing has been requested by this speical client.






How to make an UAV prototype

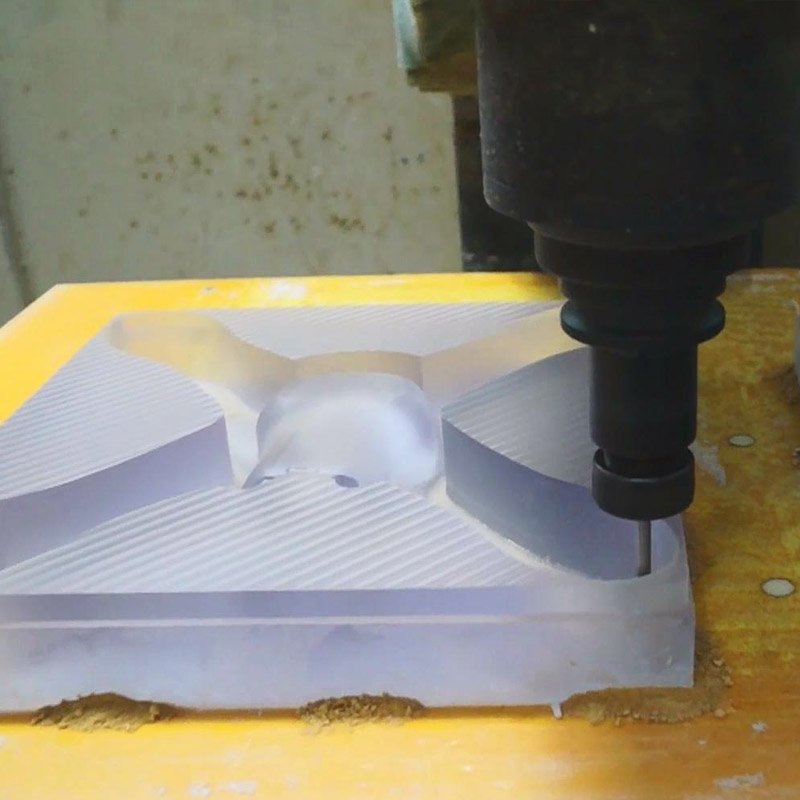

The UAV prototype was made of ABS by using CNC vowin.cn/en/News/news1251.html' target='_blank'>machining. First, we need to do CNC process to cut off the spare parts of the raw material of ABS to obtained the rudiment of prototype.






UAV prototype

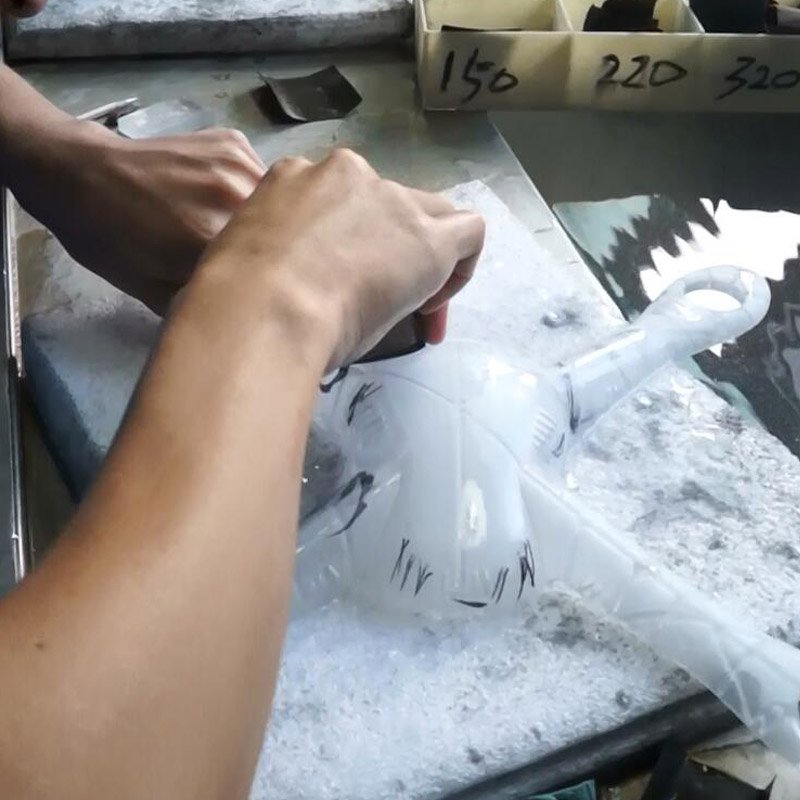

Secondly, we must do polishing to the prototype as there were some burrs or tool marks left on the prototype after CNC Machining, so, we need to use sandpaper to deburr and make the surface more smoothly.

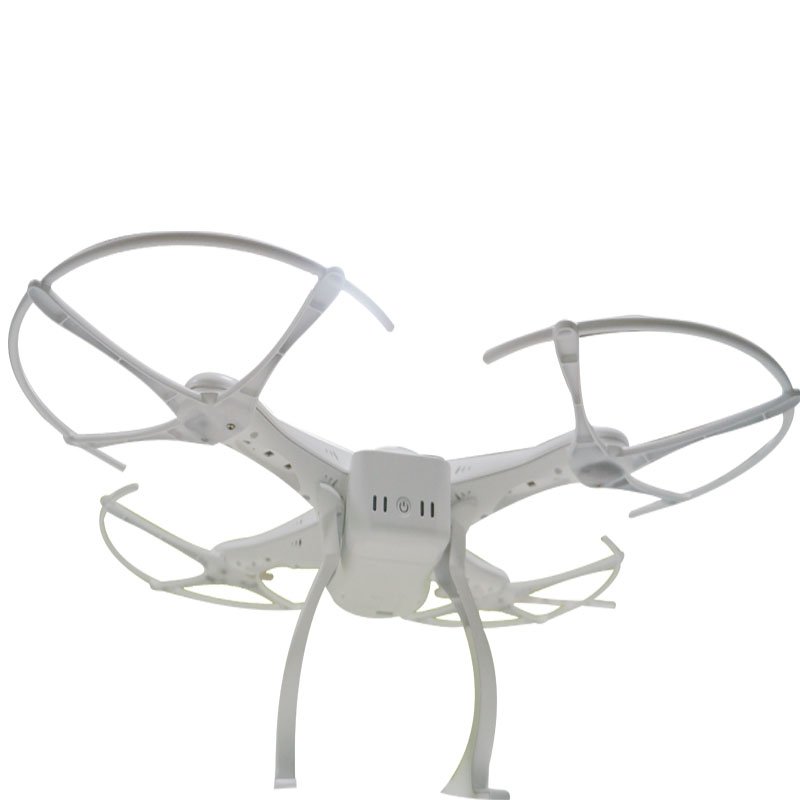

The next process is painting, we need to use painting gun to spray the surface of UAV prototype by the required color, which according to Pantone color requested by our client.






UAV prototype

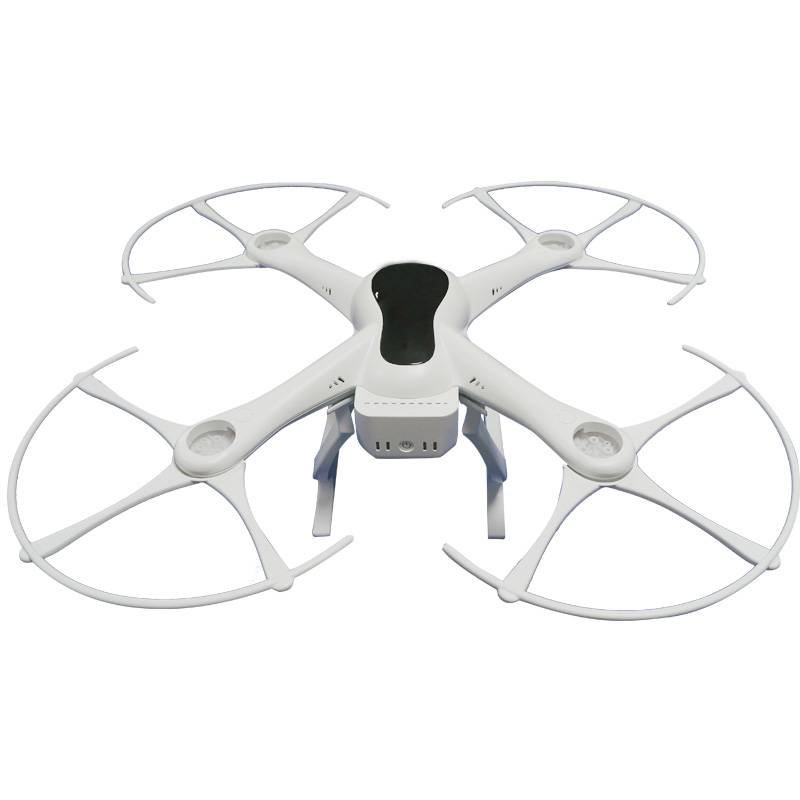

Finally,  we must do assemble to all the components to do the UAV curing, then completed prototype was ready as shown as follow.

completed prototype
